Brass Rolled Rim Grommet with Spur Washer

Name: Brass Rolled Rim Grommet with Spur Washer
Brand: Fasnap Corp
SKU: 0-S
Price: 38.64 USD
Availability: InStock

Brass Rolled Rim Grommet with Spur Washer - 0-S 1/4" / Brass / 1 GR

$38.64 USD

/ Gross $38.64 USD

/ Gross Sale Sold out

Shipping calculated at checkout.

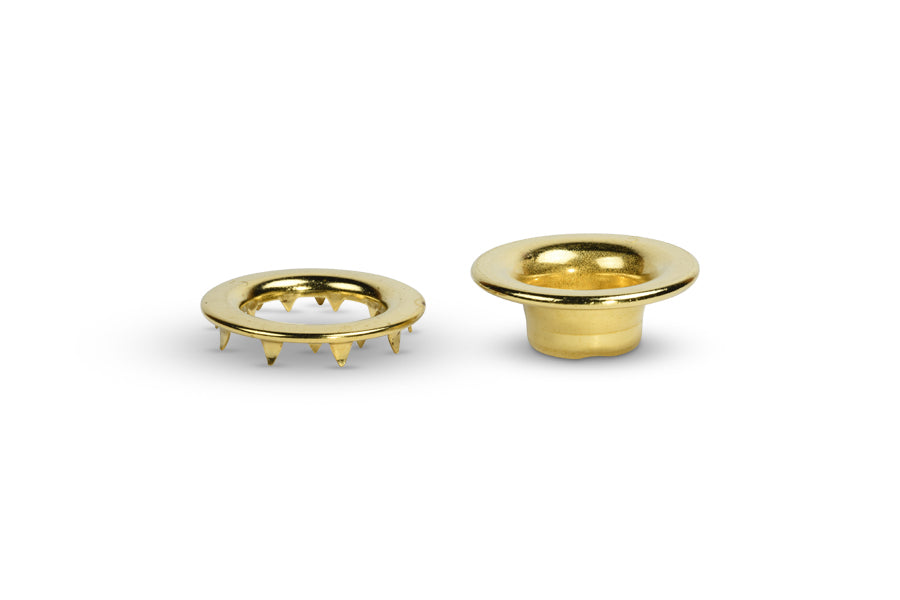

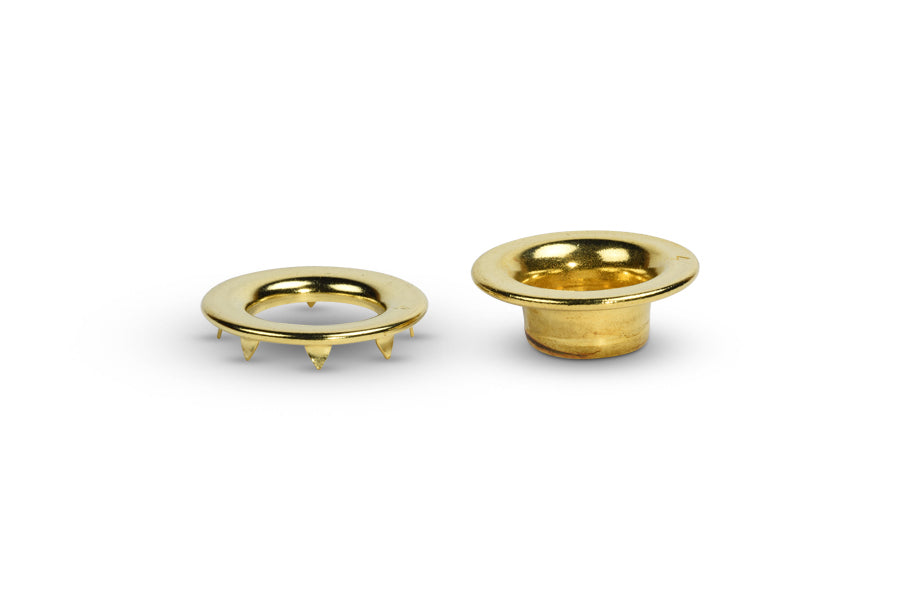

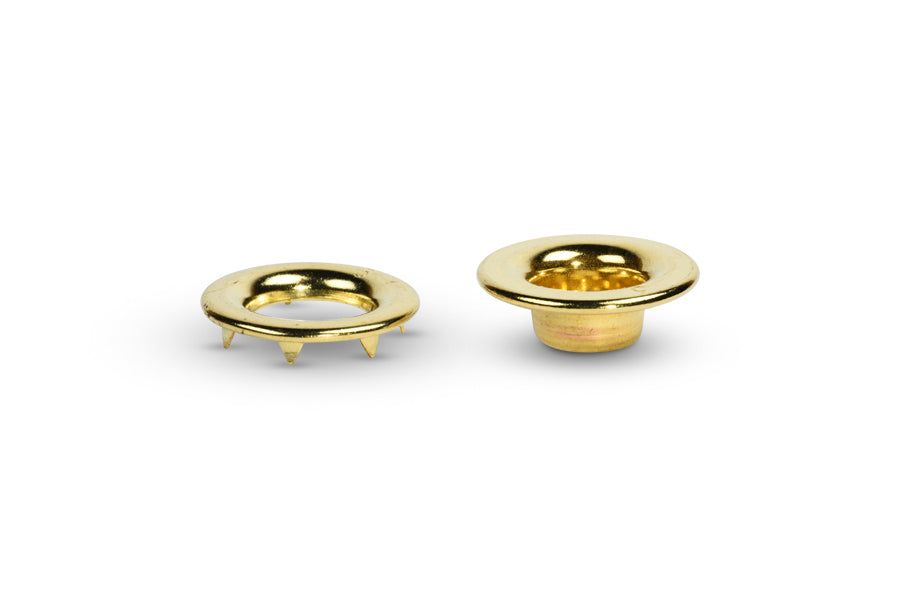

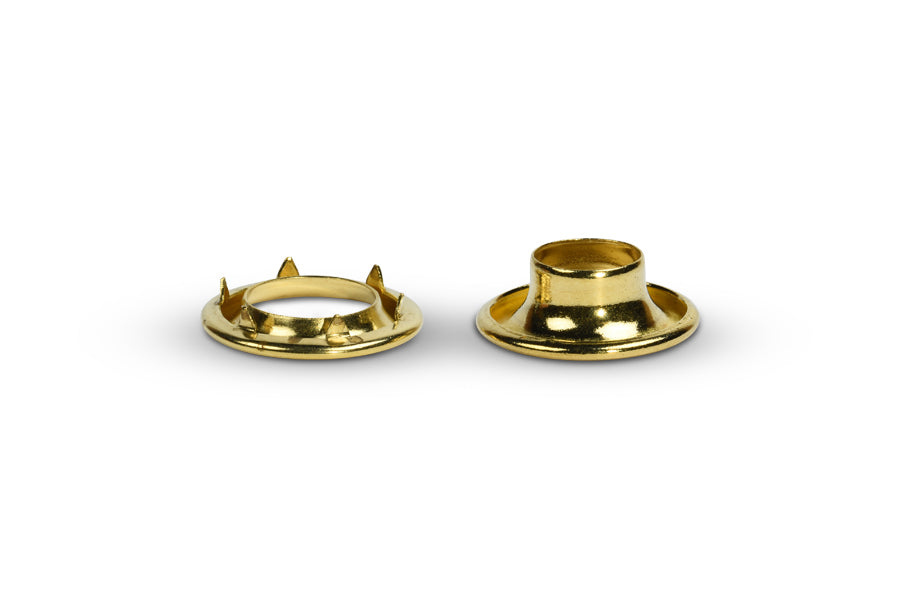

Brass Rolled Rim Grommet with Spur Washer come equipped with a set of spur tooth on the back washer. When set, these teeth grip into your materials for a stronger hold to prevent slipping and stretching around the grommet. Particularly useful in projects where tension is applied to your grommet settings.

Meets MIL-G-16491-C, AN-230; MS-20230

Sold by the gross.

Bulk purchase discounts when buying:

10-24 grommets.
25+ grommets.

Specifications: Brass Rolled Rim Grommet with Spur Washer

	0-S - 1/4 in.	1-S - 5/16 in.
Material	Brass	Brass
Hole size	9/32 (0.2815) in.	13/32 (0.40625) in.
Flange diameter	0.670 in.	0.790 in.
Length under flange	0.175 in.	0.205 in.
Sold	By the Gross	By the Gross

	2-S - 3/8 in.	3-S - 7/16 in.
Material	Brass	Brass
Hole size	7/16 (0.4375) in.	15/32 (0.46875) in.
Flange diameter	0.890 in.	0.970 in.
Length under flange	0.255 in.	0.255 in.
Sold	By the Gross	By the Gross

	4-S - 1/2 in.	5-S - 5/8 in.
Material	Brass	Brass
Hole size	9/16 (.5625) in.	5/8 (6.25) in.
Flange diameter	1.120 in.	1.285 in.
Length under flange	0.320 in.	0.380 in.
Sold	By the Gross	By the Gross
